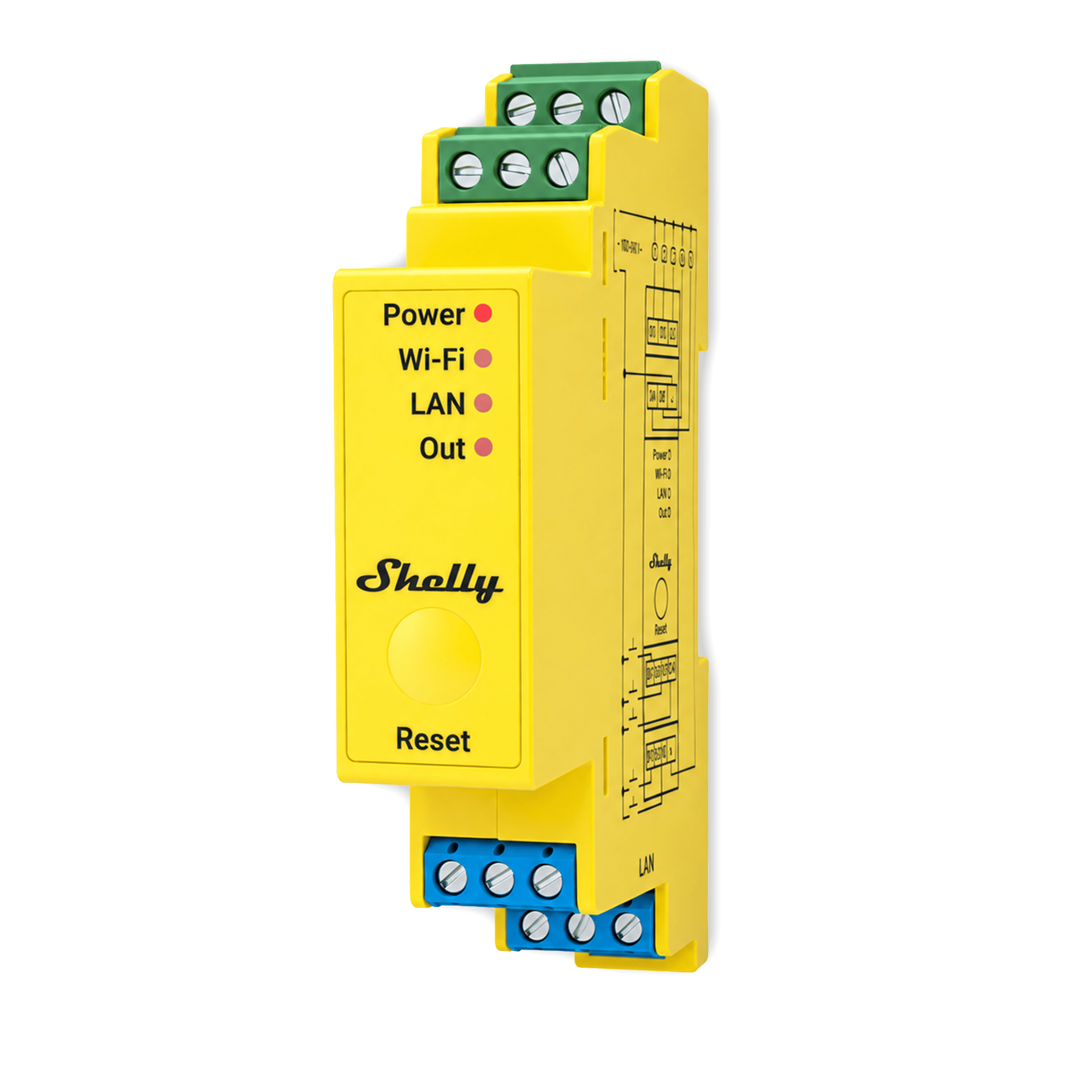

Pro RGBWW PM LED Strip Controller

A DIN-rail LED controller with five outputs and an Ethernet port. It runs an RGB and tunable-white strip, or up to five separate runs, from the switchboard.

$104.95 inc GST In stock · ships today
Free shipping over $150 Order before 3pm Melbourne time on a weekday and it ships the same day.
30-day returns Unused items, easy online returns
3-year warranty Backed by Shelly

Everything you need to know

The sections below cover what this controller does, the full specifications, and how warranty and returns work. If something's still unanswered, the questions at the bottom cover the common ones.

Product features

Five outputs, split the way the job needs

The default profile drives one RGB+CCT strip: full colour plus warm-to-cool white. The other three split the five outputs into two tunable-white strips, an RGB strip with two single-colour runs, or five single-colour runs each on its own channel.

  • RGB and CCT, the default
  • Two CCT strips
  • RGB plus two lights, or five lights

On the rail, on the cable

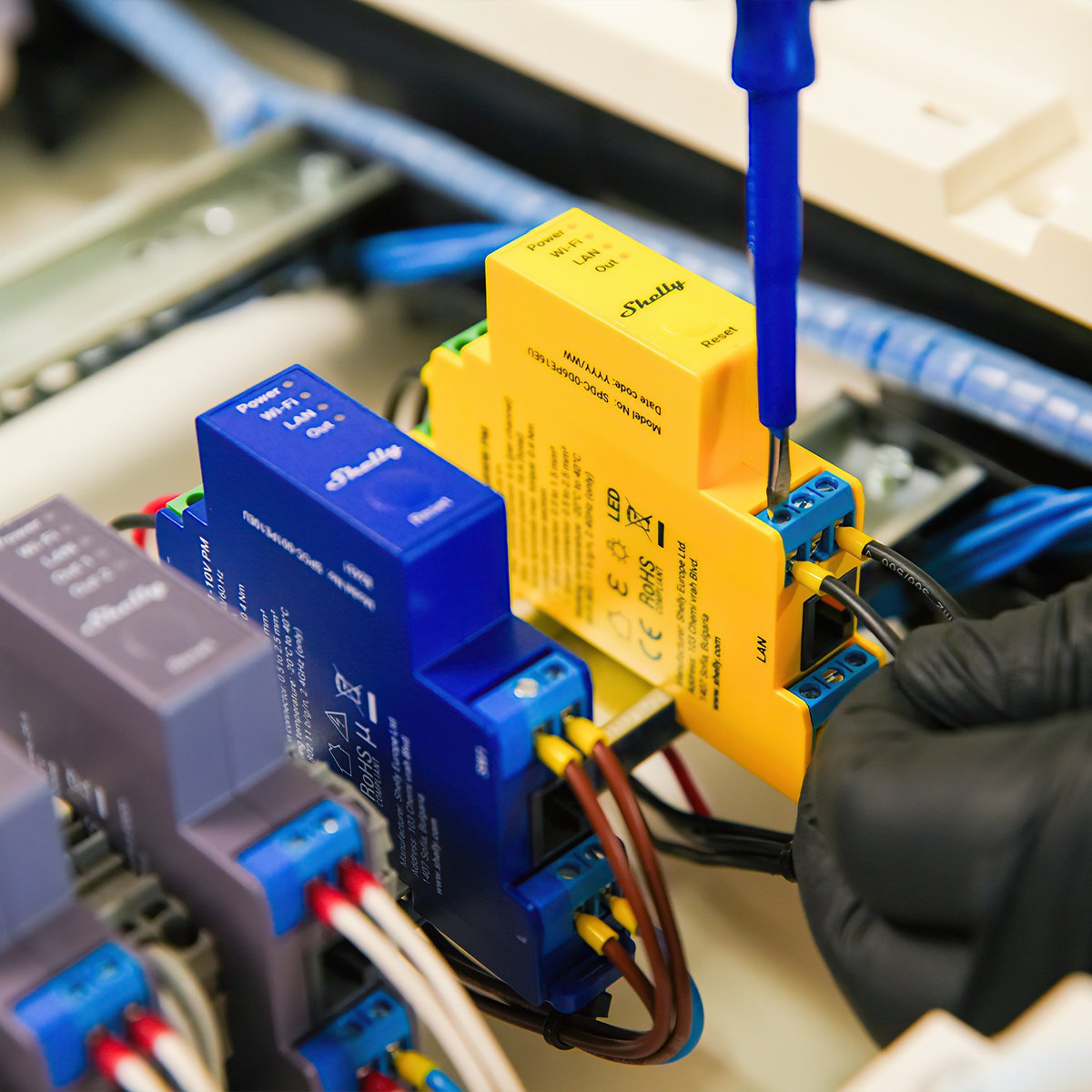

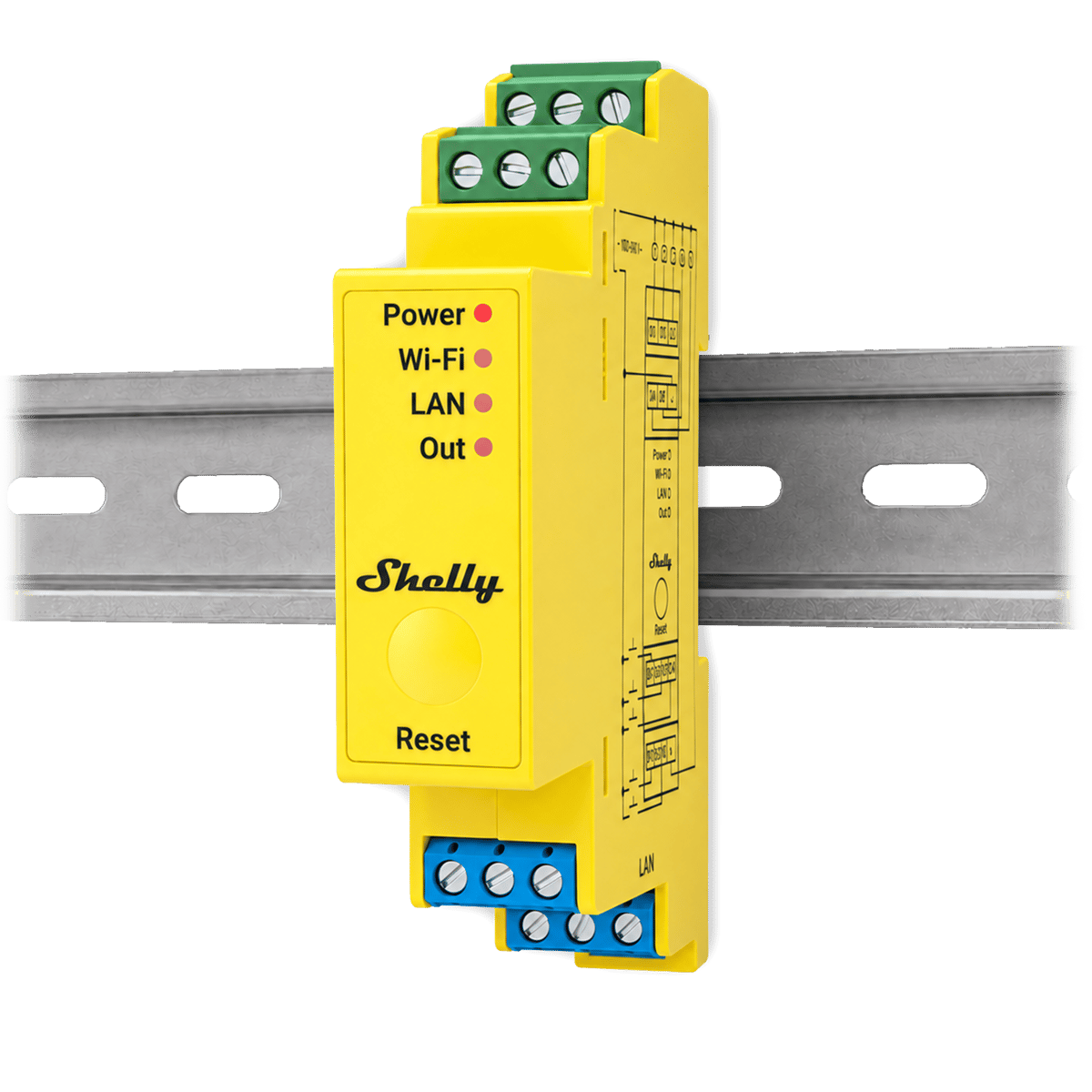

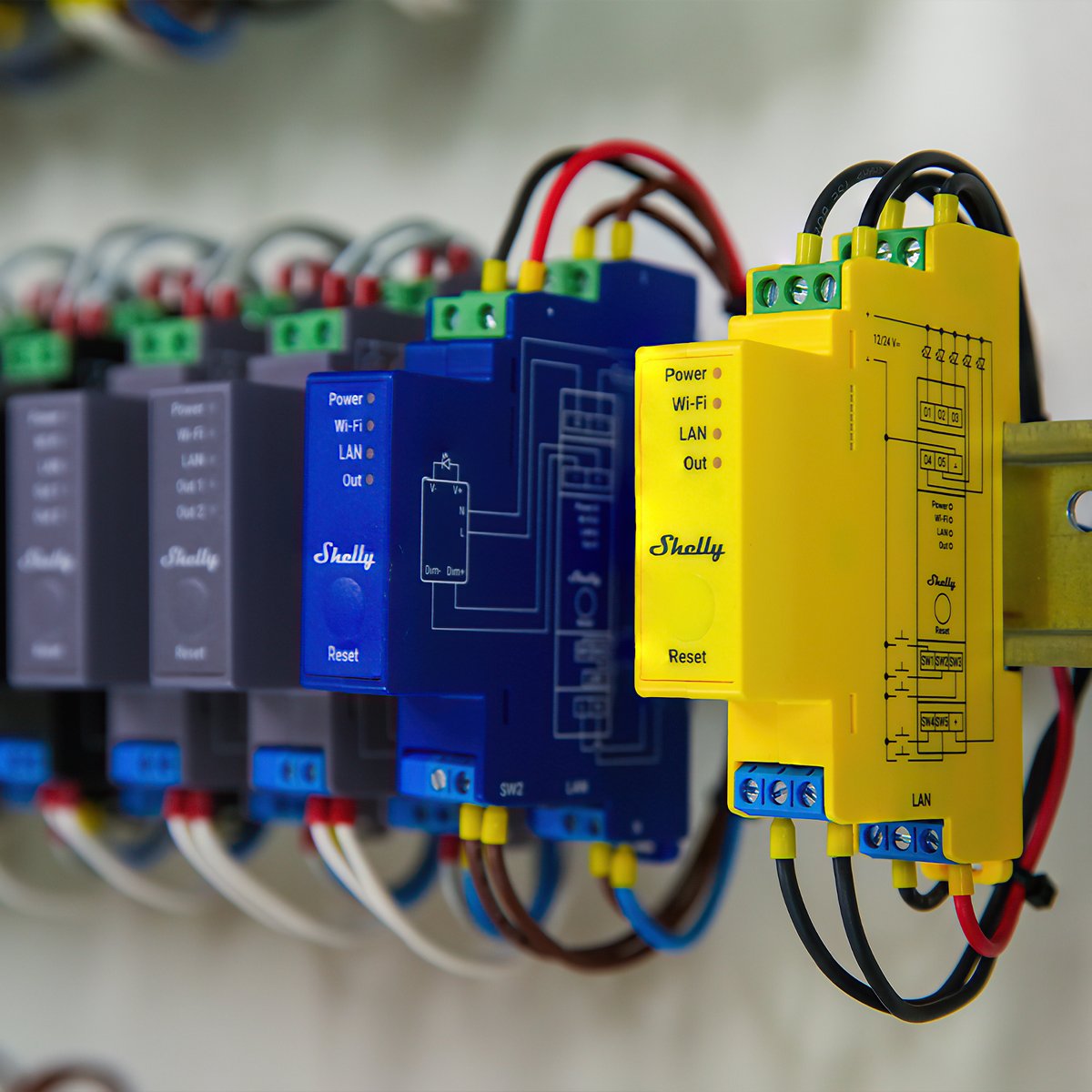

It mounts on a DIN rail with the rest of the board and has an Ethernet port alongside Wi-Fi and Bluetooth, so control can run over cable. Five inputs take switches, push buttons or potentiometers, and it meters voltage, current and power as the lights run.

  • DIN-rail mount
  • Ethernet, Wi-Fi and Bluetooth
  • Five switch or button inputs

Matched to the strip's white range

Tunable-white strips don't all span the same range. The controller defaults to 2700 K to 6500 K, and you can remap it anywhere from 1000 K to 10,000 K so the warmest and coolest settings line up with what the strip actually produces.

  • Default 2700 K to 6500 K
  • Remappable from 1000 K to 10,000 K

How Shelly works

Shelly Logo
Hands fitting a wire into a Shelly Gen3 relay in front of a Shelly T-shirt

A Shelly is a small module that makes wiring you already have controllable. It joins your Wi-Fi directly, holds its schedules and scenes on the device itself, and keeps running them if your internet drops. Nothing you set up depends on Shelly's servers being reachable.

The device

The brain is the device

Shelly does the thinking locally, not in a data centre. Schedules, scenes and logic are stored on the unit and run there, so the lights still come on at dusk when the internet is out.

The network

No hub, no bridge

There is nothing to buy before the first one works. Where a Philips Hue setup is built around a Bridge that every light talks through, a Shelly joins your router directly and answers your phone from there.

The control

The app is optional

Every Shelly serves its own web interface, so you can set it up and run it from a browser on your own network, with no account. The Shelly Smart Control app and Shelly Cloud are free and add remote access and voice control, but nothing needs them.

The generations

What Gen1 to Gen4 means

Shelly has run through four hardware generations, and the same product name can exist in more than one of them. Later generations are faster and carry more radios than the ones before, which is why the generation is part of the name. The specifications on each page tell you which one you are looking at.

Getting started
1
It goes behind what you already have Start here

Shelly retrofits. The module fits behind the switch, socket or appliance that is already there, so your switch plates and fittings stay as they are and the original switch keeps working for anyone who just wants to flick it. Anything wired into a mains circuit is a job for a licensed electrician.

2
Open by design Then run it your way

Shelly publishes its local API and does not put it behind a developer account. Devices answer HTTP and MQTT on your own network and can run small scripts on themselves. That is why Shelly is the default choice for people building on Home Assistant, which ships an official Shelly integration.

Start with one and add more whenever you like. There is no hub to outgrow, and each Shelly works on its own whether you ever add another or not.

Works with

Also works with
  • Pairs with Amazon Alexa
  • Pairs with Google Home
  • Pairs with SmartThings
  • Pairs with Home Assistant
Connects over
On Wi-Fi or Ethernet

Joins your home network, so you control it from the app with no hub or bridge.

  • Wi-Fi
  • Ethernet
Set up over Bluetooth

Used once, to get it onto your Wi-Fi.

  • Bluetooth

Works offline

Keeps working on your home network when the internet is down.

Scripts

7

Give it jobs the app can't

Scripts add jobs the controller can't do with the Shelly app's schedules and actions alone, like acting on the weather forecast or sending an alert to your phone. Each one is a small program that runs on the controller itself: copy it, paste it into the device's script editor and press Start. It doesn't need a hub, a cloud account or a subscription.

Scripts are free; installing one takes about two minutes.

Specifications & Installation

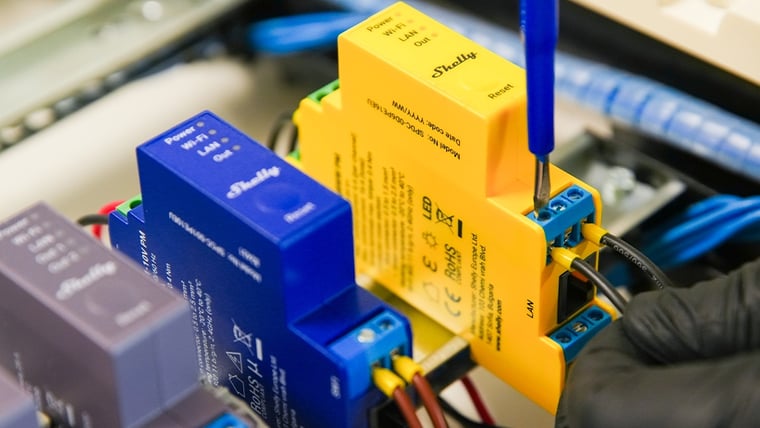

Shelly Pro RGBWW PM being wired into a DIN rail cabinet with a screwdriver

Setup · 2:32

How to install it

Shelly's install walkthrough for the Pro RGBWW PM, from DIN rail mounting to wiring an LED strip.

Watch setup video
Light
Drives strip types
RGBCCTCCTRGBSingle colour
Power
Input voltage
12–24 V
Standby power
< 1.5 W
Electrical
Max output (total)
16 A
Max output (per channel)
6 A
Build
Channels
5 channels
Connections
Screw terminals
Placement
Indoor
Dimensions
94 × 19 × 69 mm
Housing material
Plastic
Control
Push-switch input
Yes
Wi-Fi
Standard
802.11 b/g/n
Range (indoors)
30 metres
Bluetooth
Version
4.2
Range (indoors)
10 metres
Environment
Operating temperature
-20–40 °C
Operating humidity
30–70 % RH
Max altitude
2000 metres
Identifiers
SKU
SHE-CTL-0002
MPN
SPDC-0D5PE16EU

Wiring diagrams

Circuit overview
+12 or 24 V0 V12 or 24 V DC power supplyDeck lights+⊥SW1SW2SW3SW4SW5O1O2O3O4O5Shelly Pro RGBWW PM
+12 or 24 V0 VColour and white channels

Everything on this controller is low voltage from a 12 or 24 V DC power supply. Unplug the supply before you move a wire.

Showing the whole circuit

Shelly Pro RGBWW PM

100%
+12 or 24 V0 V12 or 24 V DC power supplyDeck lights+⊥SW1SW2SW3SW4SW5O1O2O3O4O5Shelly Pro RGBWW PM

Select a terminal to follow its wiring.

Common questions

Quick answers before you buy. We test this gear ourselves. Can't find yours? Ask our Melbourne team

No. The strip needs its own 12 V to 24 V DC supply, wired to the controller.

Up to 16 A across the unit, and no more than 6 A on any single output.

Yes. It mounts in the switchboard, which is a job for a licensed electrician in Australia.

No. It connects over Ethernet or Wi-Fi and works from the Shelly app, and it also pairs with Home Assistant, Alexa, Google Home and SmartThings.

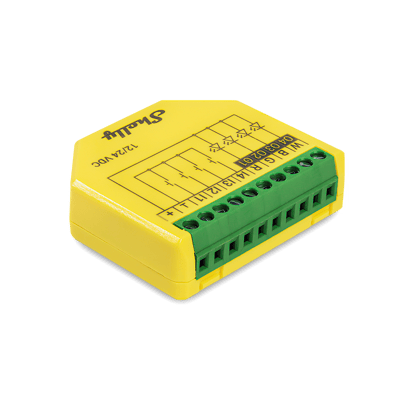

The Plus is a compact four-channel controller for a wall box, rated 10 A in total. This one has five channels, runs colour and tunable white on one strip, takes 16 A, adds Ethernet and mounts on a DIN rail.
