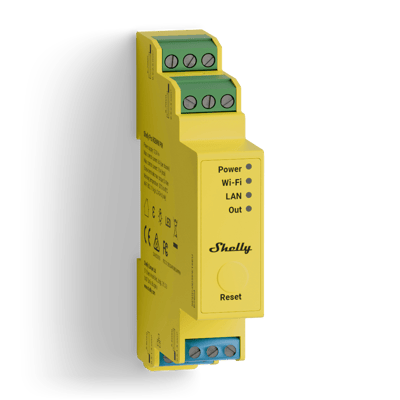

Shelly Pro RGBWW PM wiring diagram
How to wire a Shelly Pro RGBWW PM to run colour and white deck lights from a 12 or 24 V power supply.
Wiring diagrams
12 or 24 V DC power supplyShelly Pro RGBWW PM
Circuit overview
+12 or 24 V0 VColour and white channels
Everything on this controller is low voltage from a 12 or 24 V DC power supply. Unplug the supply before you move a wire.
Showing the whole circuit
How it's wired, terminal by terminal
-
Run colour and white deck lights
Run colour and white deck lights (RGBCW)
The 12 or 24 V power supply lands on + and ⊥. The deck lights' common V+ joins the supply positive. In the RGB and CCT profile, red goes to O1, green to O2, blue to O3, warm white to O4 and cool white to O5. SW1 to SW5 take optional switches or buttons and aren't used here.
Terminals for run colour and white deck lights on the Shelly Pro RGBWW PM Terminal What it does here + Positive from the power supply, and the lights' common V+ ⊥ Negative from the power supply O1 Red O2 Green O3 Blue O4 Warm white O5 Cool white SW1 Optional switch or button SW2 Optional switch or button SW3 Optional switch or button SW4 Optional switch or button SW5 Optional switch or button SW1 to SW5 take optional switches or buttons for local control.
Supply: 12 or 24 V DC power supply
See the smart deck lights guide
