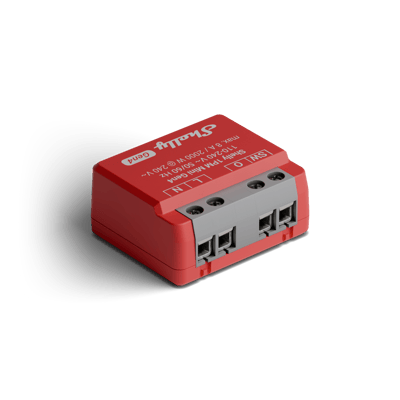

Shelly 1PM Mini Gen4 wiring diagram
How to wire a Shelly 1PM Mini Gen4 to switch and meter an appliance, with a wall switch on SW.
Wiring diagrams
230 V~ 50 HzShelly 1PM Mini Gen4
Circuit overview
1Wall switch2Appliance
Active (supply)Neutral / 0 VSwitched loadSwitch signal / dry contact
In Australia, fixed 230 V wiring is licensed-electrician work. Use these diagrams to plan the job and brief your electrician.
Showing the whole circuit
How it's wired, terminal by terminal
-
Meter an appliance
One measured circuit, small enough to hide
Mains comes in on L and N, and O carries the switched active out to the appliance while the relay reports its live power draw and energy use in the app. A wall switch on SW keeps working alongside the app. Up to 8 A, so check the appliance's rating; a pump or other motor needs an RC snubber across the load.
Terminals for meter an appliance on the Shelly 1PM Mini Gen4 Terminal What it does here O The metered appliance, up to 8 A (a motor needs an RC snubber) L 230 V active in N Neutral in SW Optional wall switch Supply: 230 V~ 50 Hz
