Shelly Pro Dimmer 1PM wiring diagram

How to wire a Shelly Pro Dimmer 1PM in the switchboard to dim a light, with push buttons on SW1 and SW2.

Checked

Wiring diagrams

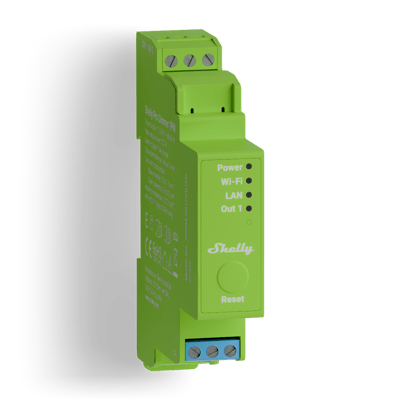

Shelly Pro Dimmer 1PM

230 V~ 50 Hz
Circuit overview
LN230 V~ 50 Hz1Push button2Dimmable lightSW1SW2OLLNShelly Pro Dimmer 1PM
1Push button2Dimmable light
Active (supply)Neutral / 0 VSwitched loadSwitch signal / dry contact

In Australia, fixed 230 V wiring is licensed-electrician work. Use these diagrams to plan the job and brief your electrician.

Showing the whole circuit

Shelly Pro Dimmer 1PM

100%
LN230 V~ 50 Hz1Push button2Dimmable lightSW1SW2OLLNShelly Pro Dimmer 1PM
1Push button2Dimmable light

Select a terminal to follow its wiring.

How it's wired, terminal by terminal

  1. Dim a light

    One dimmed circuit from the switchboard, with a button on SW1

    The dimmer sits on a DIN rail in the switchboard. Mains comes in on L and N, and O carries the dimmed active out to the light. A push button on SW1 switches the light with a press and dims it while held; add a second button on SW2 for separate up and down. Dimmable lights only, up to 200 W.

    Terminals for dim a light on the Shelly Pro Dimmer 1PM
    Terminal What it does here
    L 230 V active in (either L terminal)
    N Neutral in
    O Dimmed active out to the light
    SW1 Push button: press to switch, hold to dim
    SW2 Second button input for the same light

    Supply: 230 V~ 50 Hz
